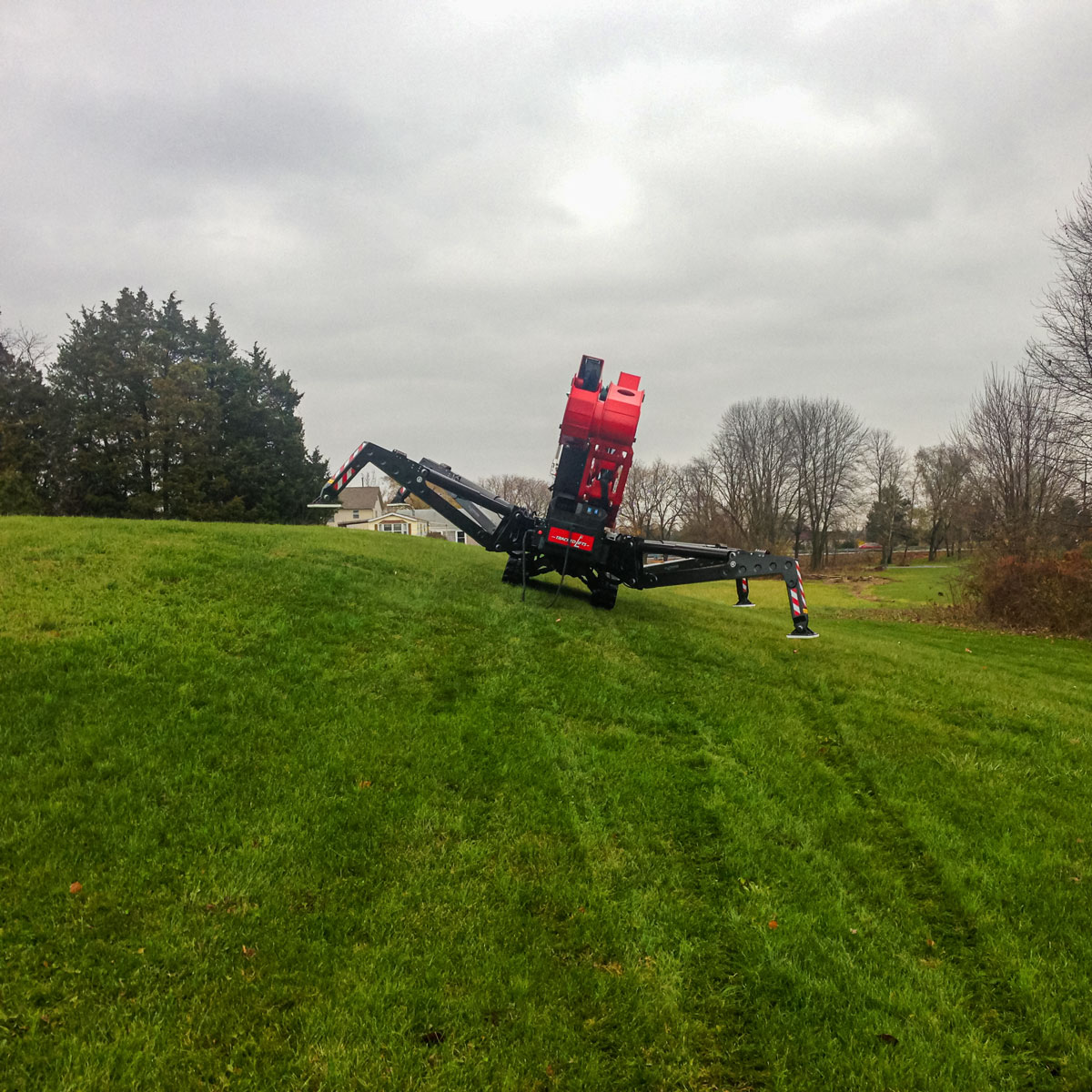

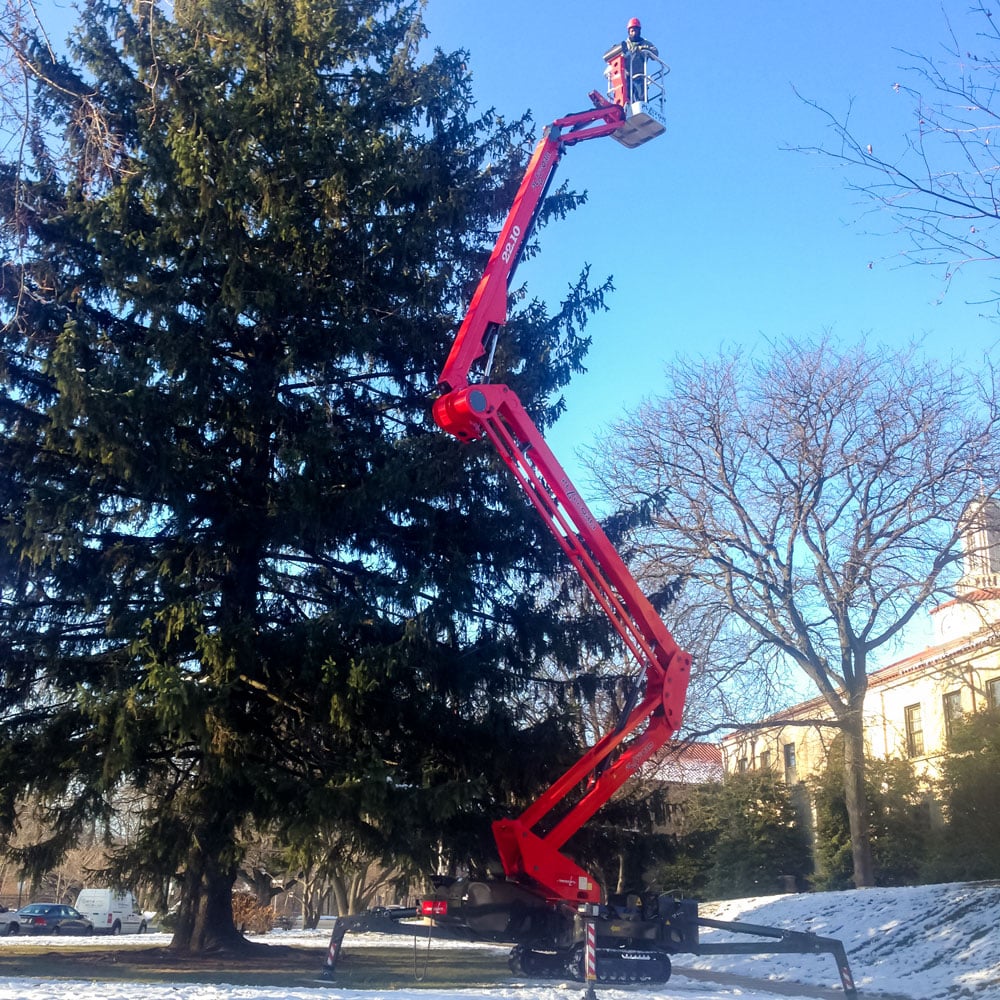

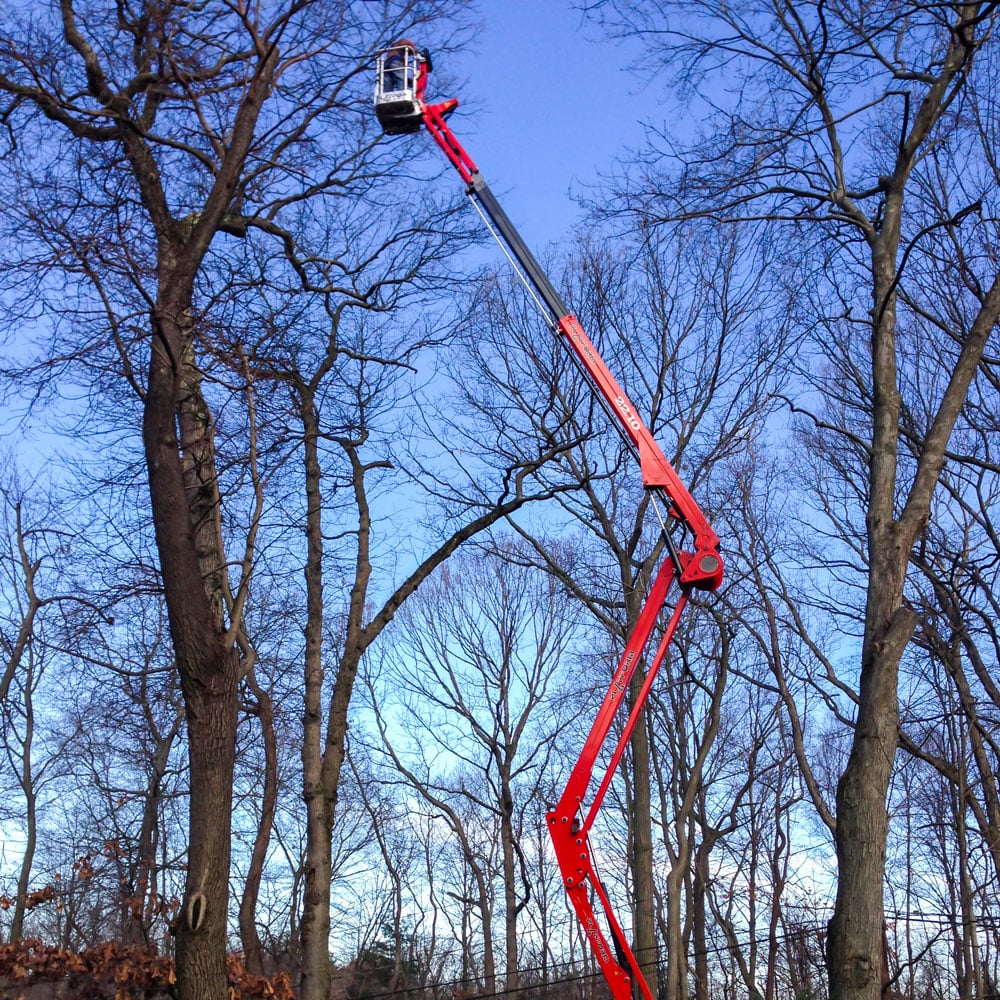

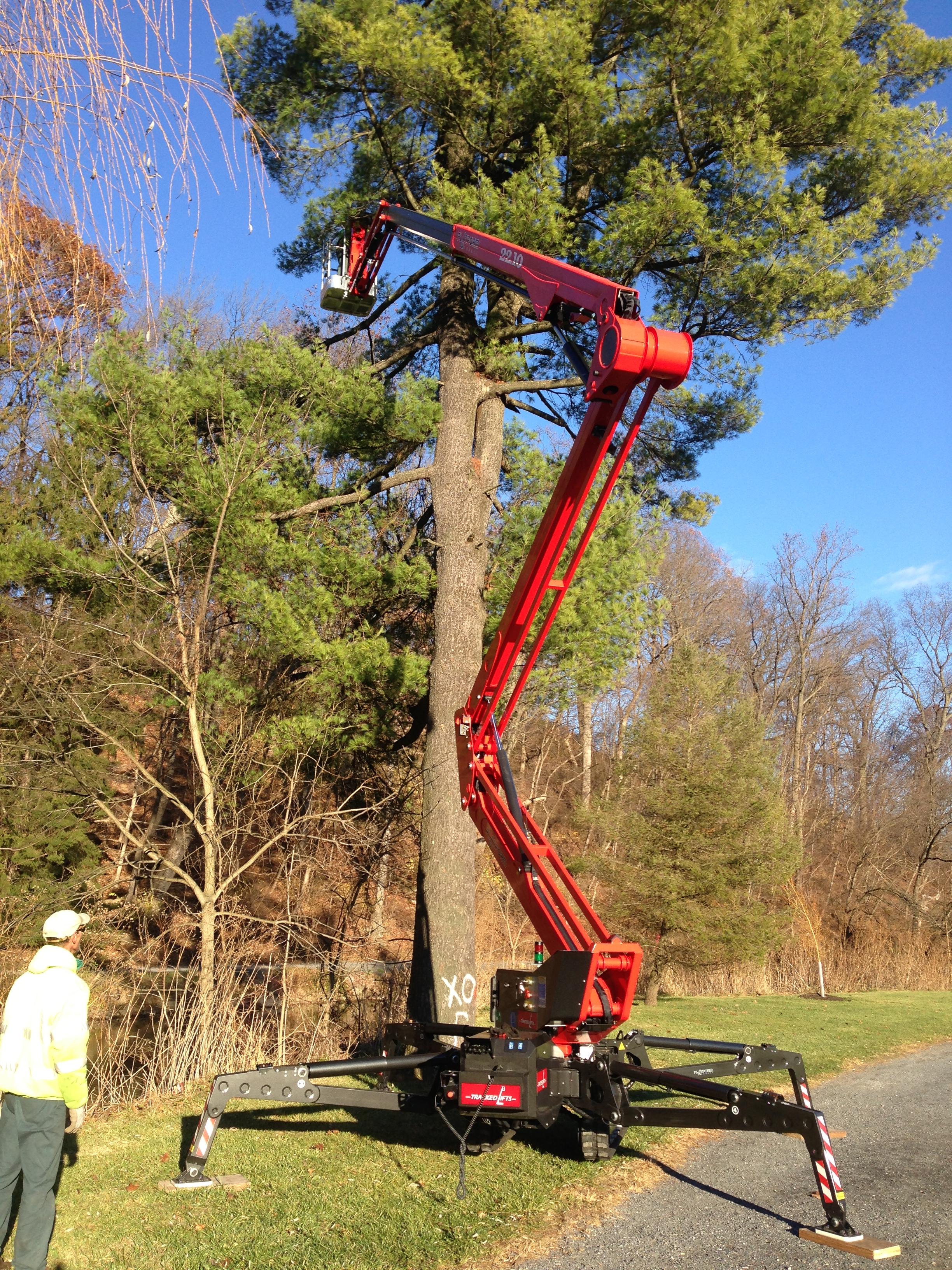

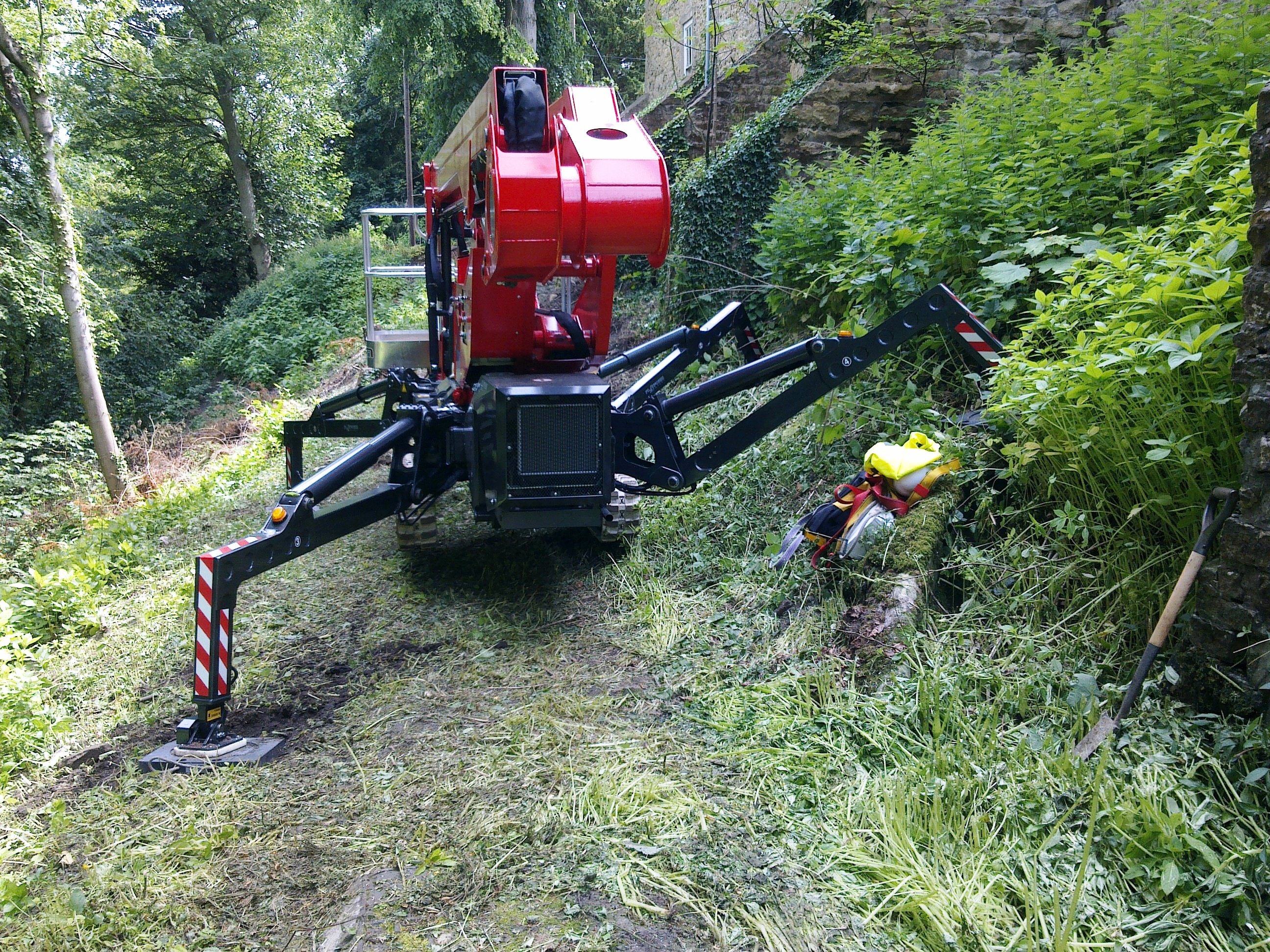

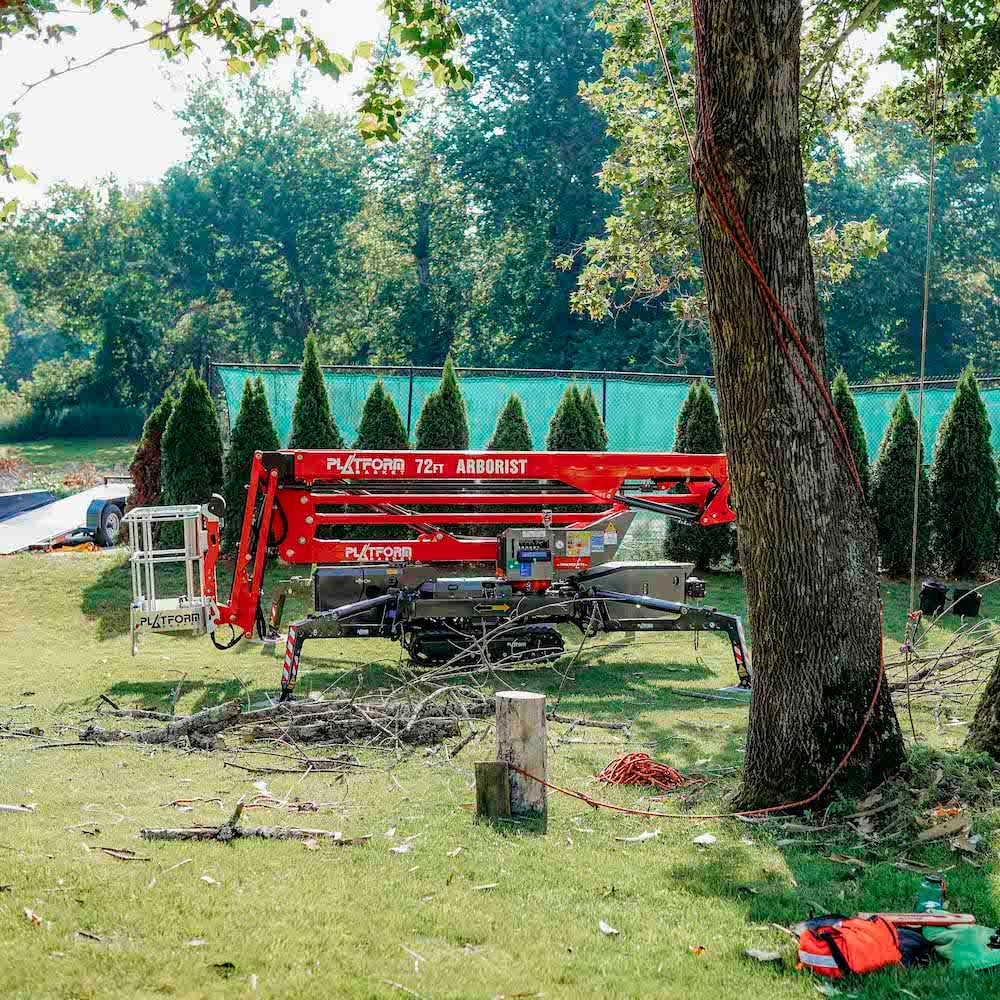

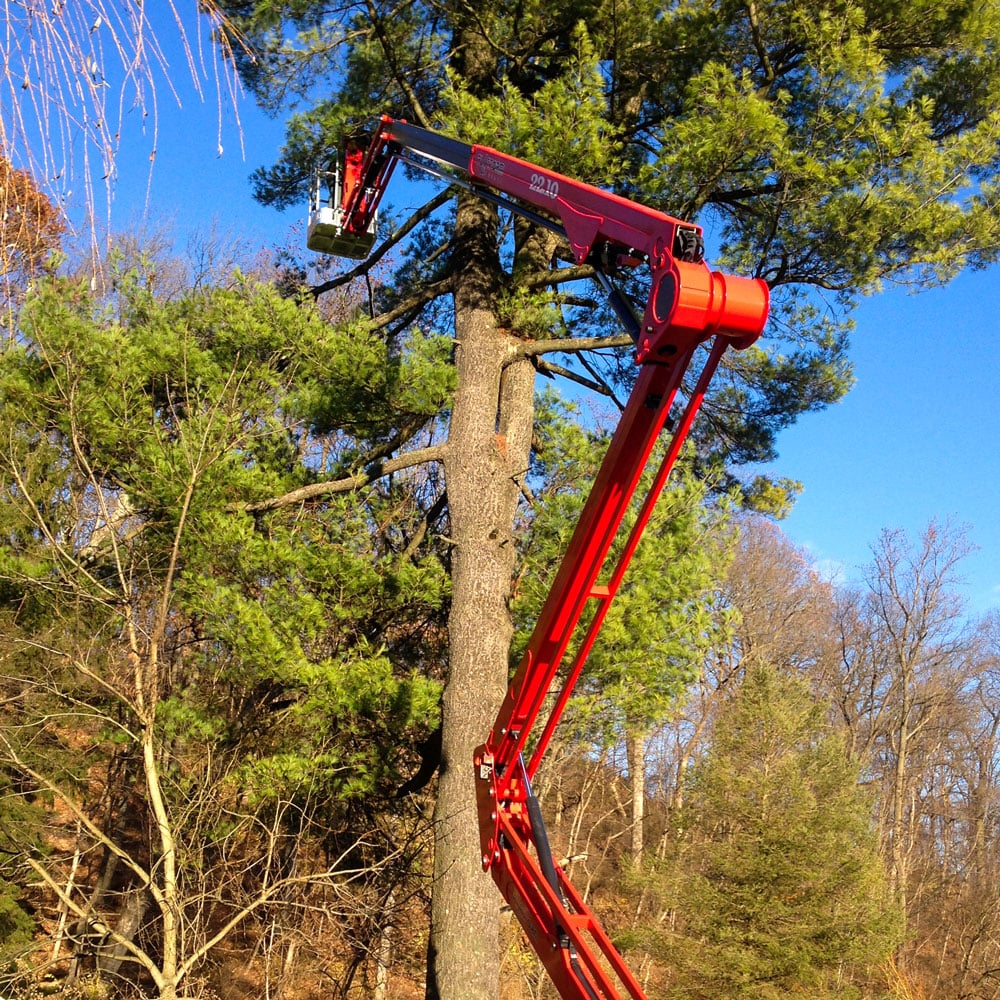

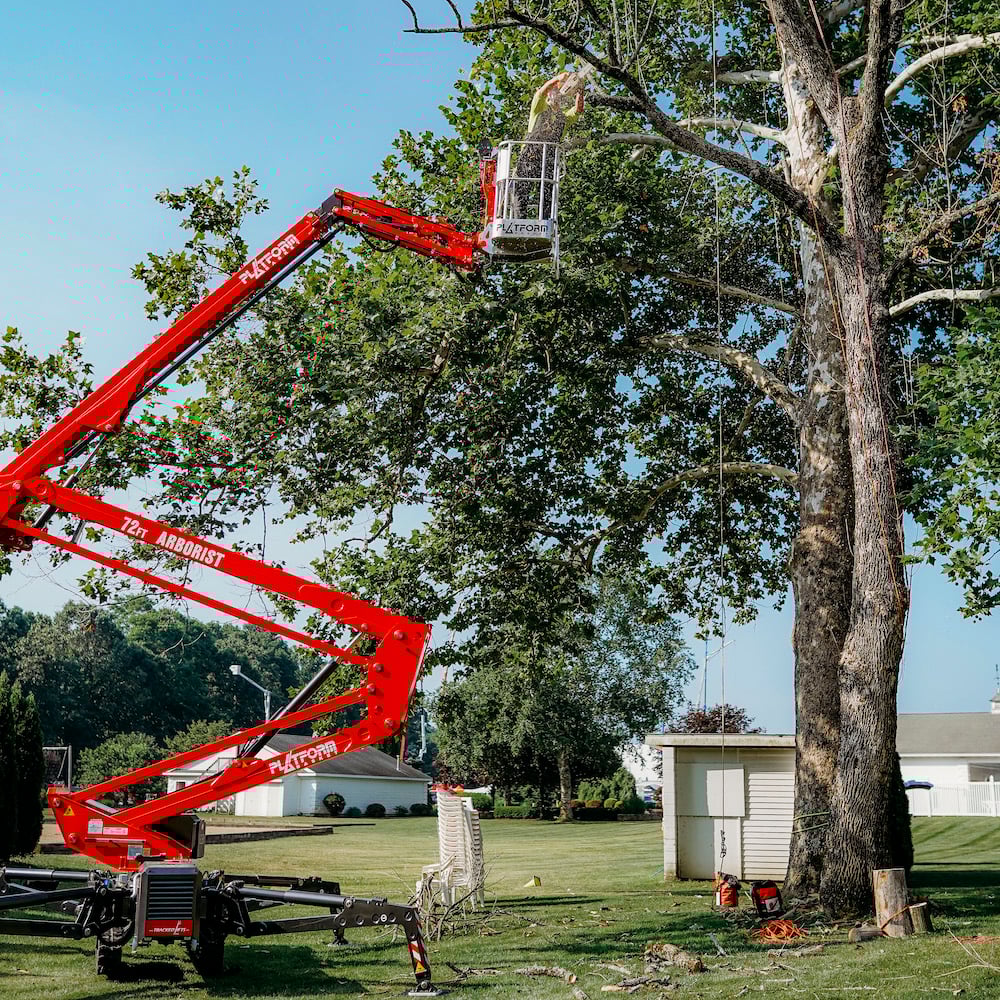

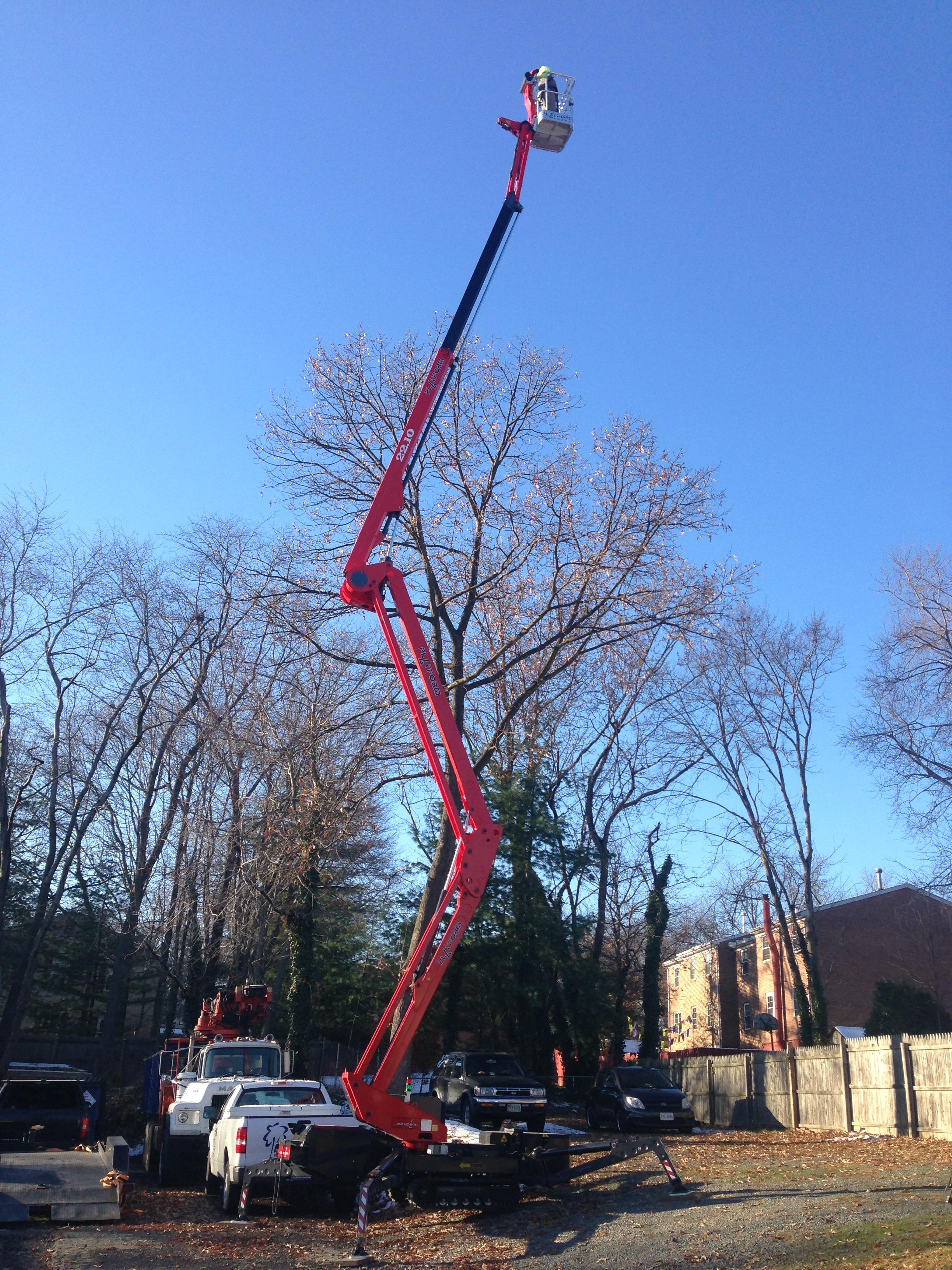

Platform Basket 22.10
- Working Height: 72'
- Outreach: 34' unrestricted
- Width: 35"
- Weight:6,900 lbs
Specifications
Brochure
Chart
Specifications
Specifications
Max. working height
72'
Max. outreach
34' unrestricted
Max. basket load
300 lbs
Basket size
2’7” x 2'3" (1-man basket)
Turret rotation
360° non-continuous
Traveling length
19'3" (20'7" with basket)
Traveling height
6’9” narrow mode / 7’1” wide mode

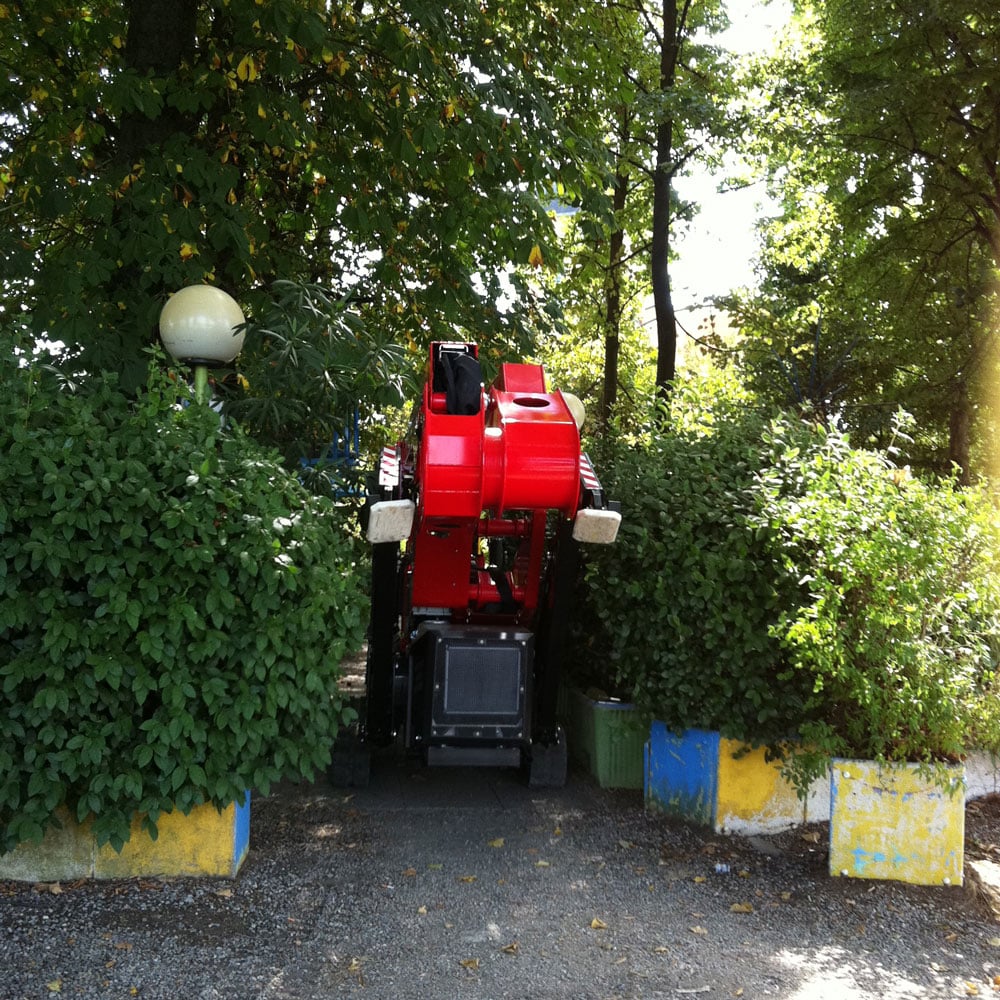

Traveling width
2'11" narrow mode / 3'8" wide mode
Operational width
Outrigger spread - 14’7” x 14’7”
Battery
12V Emergency Descent System
Engine
Kubota Diesel, 15 HP
Total weight
6,900 lbs
Gradability, max. across slope up
31% (17°)
Gradability, max. up and down slope
29% (16°)
Deployment ability on slopes up to
31% (17°)
