Overview

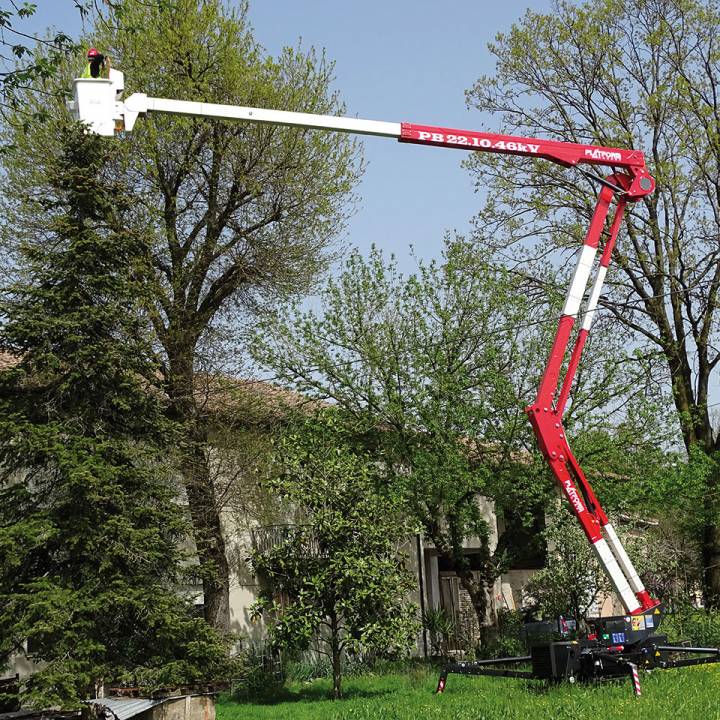

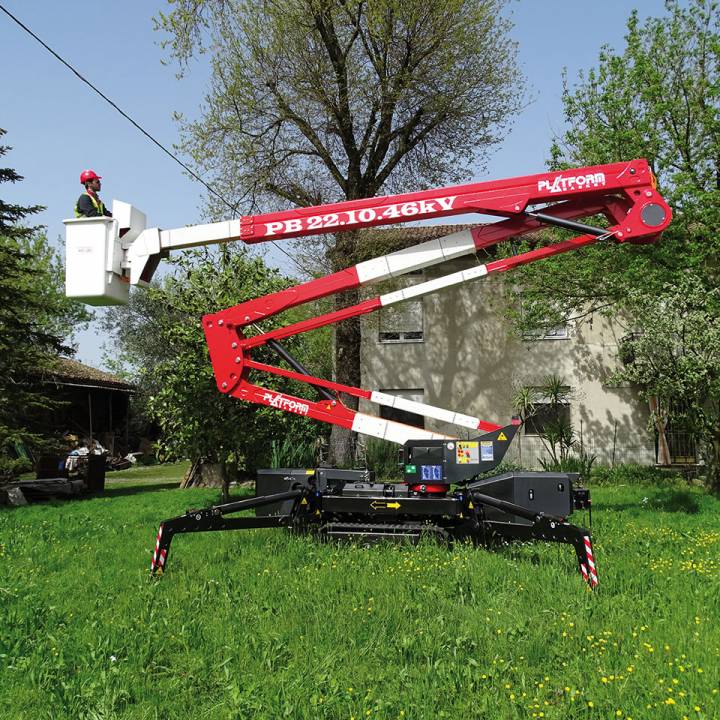

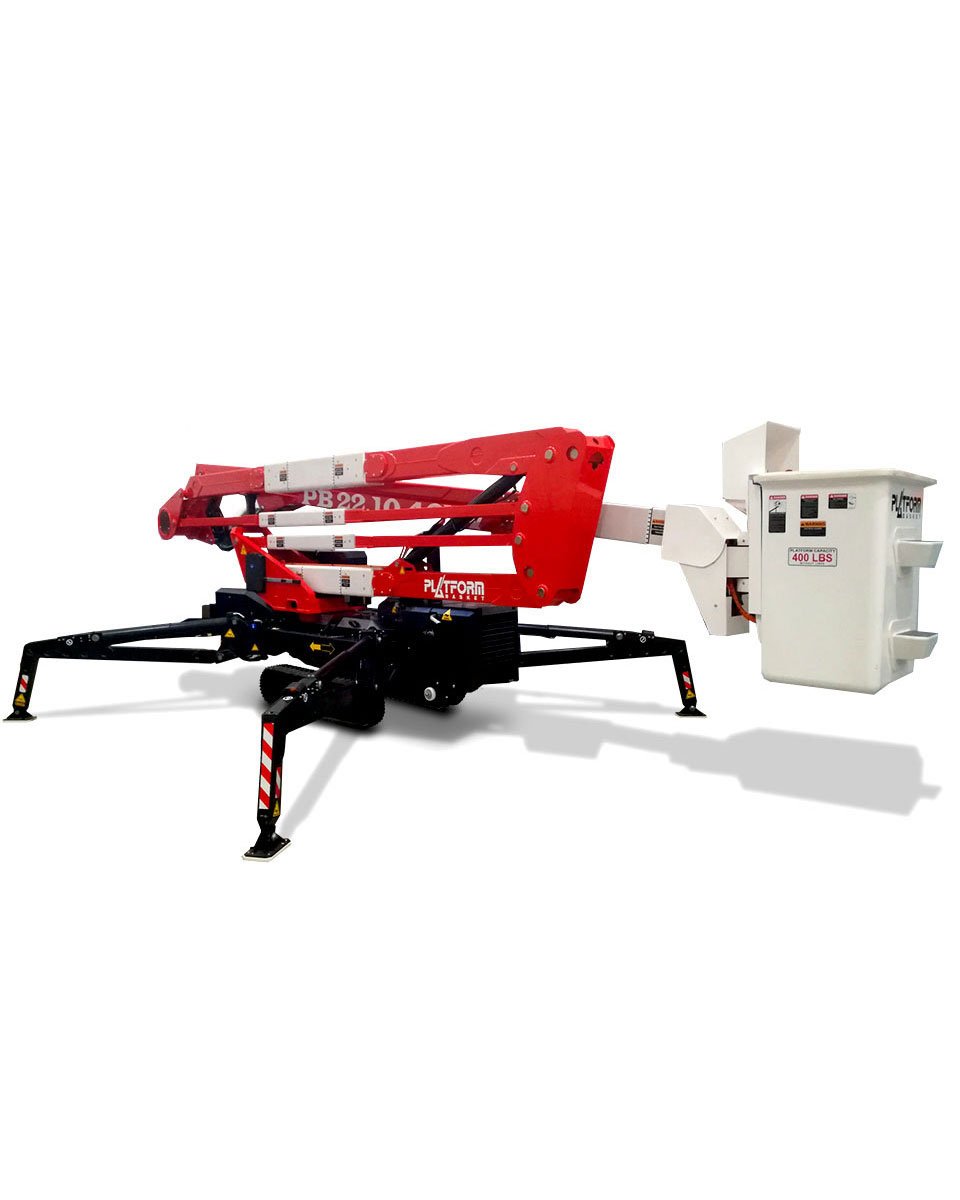

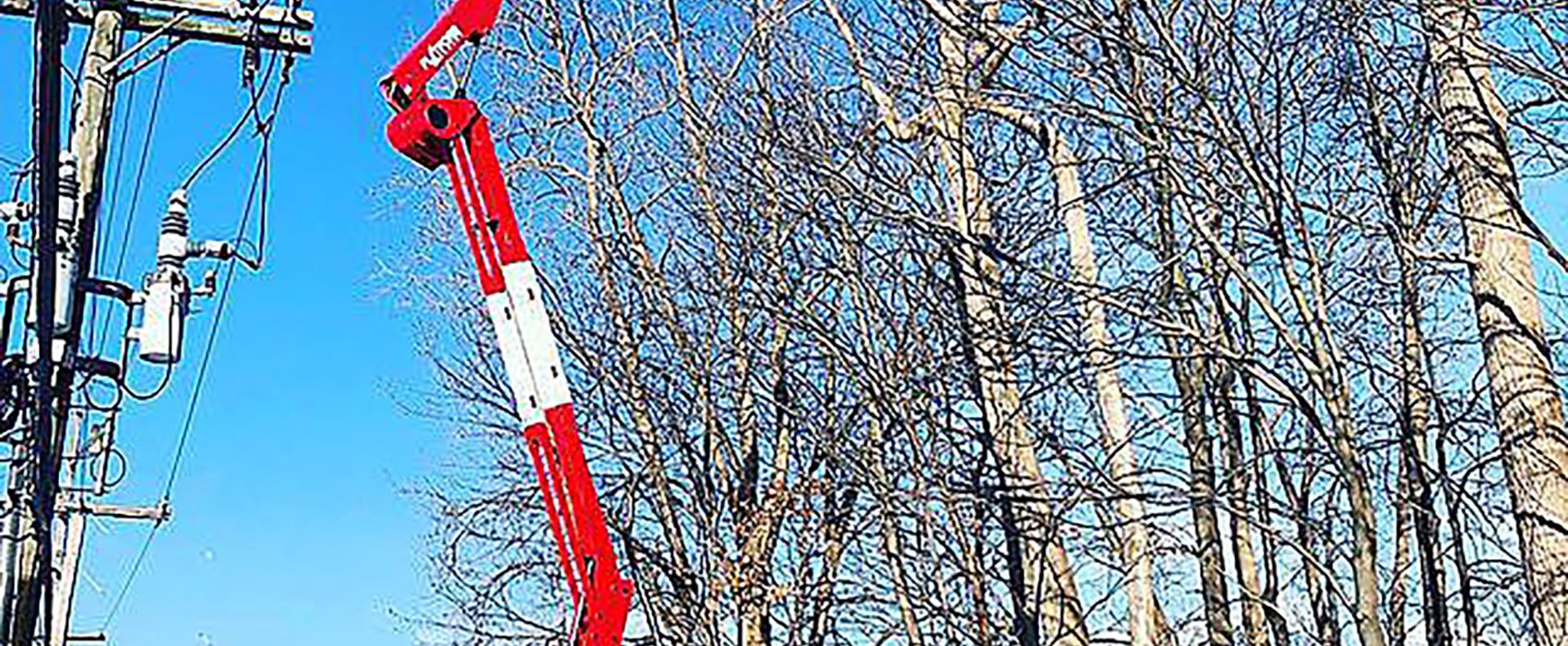

The Tracked Lift 22.10 - 72' Arborist 46kV is a model specifically designed for aerial work near live power lines. Close collaboration between Tracked Lifts and Italian manufacturer Platform Basket Srl led to the development of a tracked self-propelled aerial platform in the 72 ft working height range with key section made from fiberglass. The platform was the first of its kind in American and international markets.

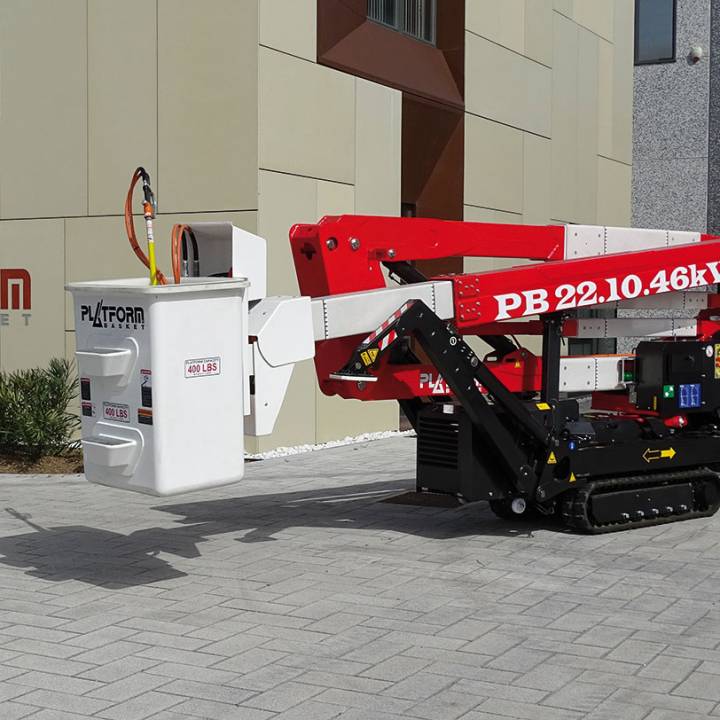

It is one-of-a-kind for its ultra-compact design, which allows it to go through any standard gate and/or door, and from its fully insulated design, to keep the basket operator and ground personnel safe.
Specifications
DOWNLOAD FULL SPECS
Max Working Height
72'
Max Working Height: The highest point the platform can safely reach when fully extended.
Max Outreach
32'10" unrestricted
Max Outreach: The maximum horizontal distance the platform can extend from the base.
Max Basket Load
300 lbs
Max Basket Load: The total weight the platform can support, including operators and equipment.

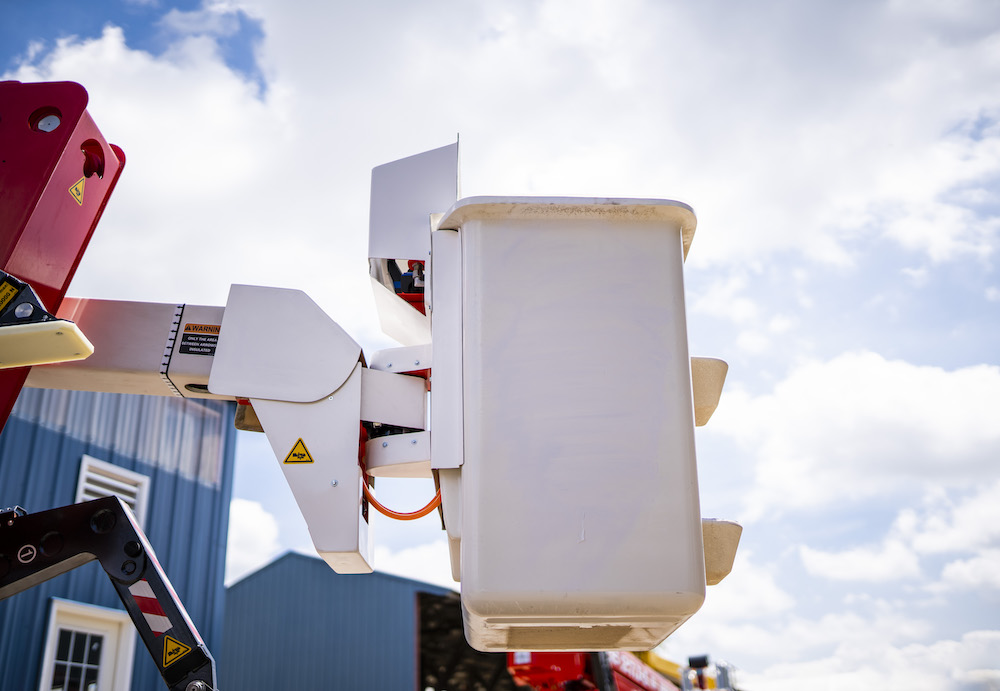

Basket Size
2’9” x 2'2" (1-man bucket)
Basket Size: The dimensions of the platform where operators stand and work.
Basket Rotation
+ / - 90°
Basket Rotation: The degree to which the platform can rotate to improve positioning.
Turret Rotation
360° non-continuous
Turret Rotation: The degree to which the base of the lift can turn without moving the entire machine.
Traveling Length
25'5"
Traveling Length: The full length of the lift when folded for transport or storage.
Traveling Height
7'5"
Traveling Height: The total height of the lift when fully lowered for transport.
Operational Width
Outrigger spread - 13’5” x 13’11”
Operational Width: The full width of the lift when deployed, including any extended stabilizers.
Battery
12V Emergency Descent System
Battery: The power source for electric lifts, determining runtime and charging needs.
Engine
Kubota Diesel, 15 HP
Engine: A fuel-powered engine used in some lifts for extended use and outdoor work
Total Weight
7,937 lbs
Total Weight: The overall weight of the lift, important for transport and ground stability.
Gradability (Max. across slope up)
29% (16°)
Gradability (Max. across slope up) : The steepest side-to-side slope the lift can safely move on
Gradability (Max. up and down slope)
29% (16°)
Gradability (Max. up and down slope): The maximum incline or decline the lift can travel up or down.
Deployment ability on slopes up to
29% (16°)
Deployment ability on slopes up to: The steepest slope where the lift can be safely set up and operated.
