< ALL PRODUCTS
Platform Basket

TL 22.10

WORKING HEIGHT
72'
WIDTH
35"
OUTREACH
34' unrestricted
WEIGHT
6,900 lbs

The 72ft Arborist by Arborists is the most ruggedized tracked spider lift on the market featuring armor to protect from tough tree work. Learn more here!

REQUEST A QUOTE
DOWNLOAD SPEC SHEET

Overview

The Tracked Lift 22.10 72ft Arborist by Arborists is the most ruggedized tracked spider lift on the market, as it is vastly simplified for the extreme rigors of tree work and all-weather/all-terrain operations.

​​Tracked Lifts worked with Platform Basket to design the 72ft Arborist by Arborists with all hydraulic systems, motor, and electrical components fully armored with the intent of increasing the safety of operators and reducing the risk of damage during tree work.

This portable lift for tree trimming is an ultra-capable general use machine, offering simplicity and unsurpassed reliability with live-hydraulic redundancies to provide the utmost safety and dependability for operators.

Ultra-light and easy to transport, it is powered by a Kubota Diesel engine coupled with a 12V DC emergency lowering system. This tracked man lift also features a simplified outrigger spread with one position to eliminate the complex computerized load management system while still allowing for full boom articulation at its max load.

"I feel like it's built to do tree work, where other lifts are built to just get you in the air. They really thought about tree work when the designed it."
-Dane, Platform Basket 22.10 Operator



REQUEST A QUOTE

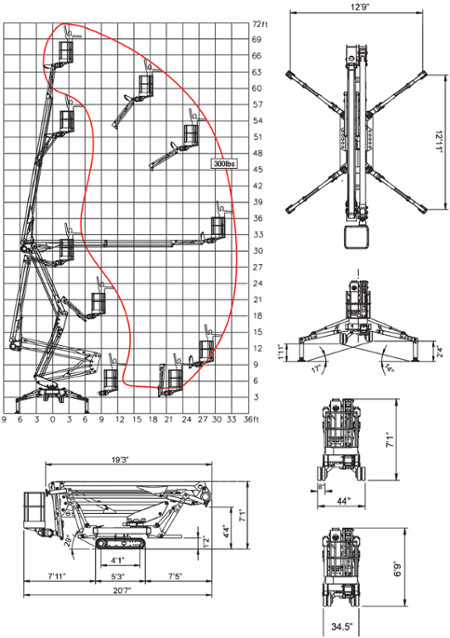

Specifications

DOWNLOAD FULL SPECS
Max Working Height
Max Working Height: The highest point the platform can safely reach when fully extended.
72'
Max Outreach
Max Outreach: The maximum horizontal distance the platform can extend from the base.
34' unrestricted
Max Basket Load
Max Basket Load: The total weight the platform can support, including operators and equipment.
300 lbs
Basket Size
Basket Size: The dimensions of the platform where operators stand and work.
2’7” x 2'3" (1-man basket)
Basket Rotation
Basket Rotation: The degree to which the platform can rotate to improve positioning.
Turret Rotation
Turret Rotation: The degree to which the base of the lift can turn without moving the entire machine.
360° non-continuous
Traveling Length
Traveling Length: The full length of the lift when folded for transport or storage.
19'3" (20'7" with basket)
Traveling Height
Traveling Height: The total height of the lift when fully lowered for transport.
6’9” narrow mode / 7’1” wide mode
Operational Width
Operational Width: The full width of the lift when deployed, including any extended stabilizers.
Outrigger spread - 14’7” x 14’7”
Battery
Battery: The power source for electric lifts, determining runtime and charging needs.
12V Emergency Descent System
Engine
Engine: A fuel-powered engine used in some lifts for extended use and outdoor work
Kubota Diesel, 15 HP
Total Weight
Total Weight: The overall weight of the lift, important for transport and ground stability.
6,900 lbs
Gradability (Max. across slope up)
Gradability (Max. across slope up) : The steepest side-to-side slope the lift can safely move on
31% (17°)
Gradability (Max. up and down slope)
Gradability (Max. up and down slope): The maximum incline or decline the lift can travel up or down.
29% (16°)
Deployment ability on slopes up to
Deployment ability on slopes up to: The steepest slope where the lift can be safely set up and operated.
31% (17°)
