Platform Basket

TL 20.95

WORKING HEIGHT
64'
WIDTH
31"
OUTREACH
31'2"
WEIGHT
6,283 lbs

The Tracked Lift 20.95 by Platform Basket is lightweight and easy to transport, reaching a working height of 64 feet. Click here for features and more!

REQUEST A QUOTE
DOWNLOAD SPEC SHEET

Overview

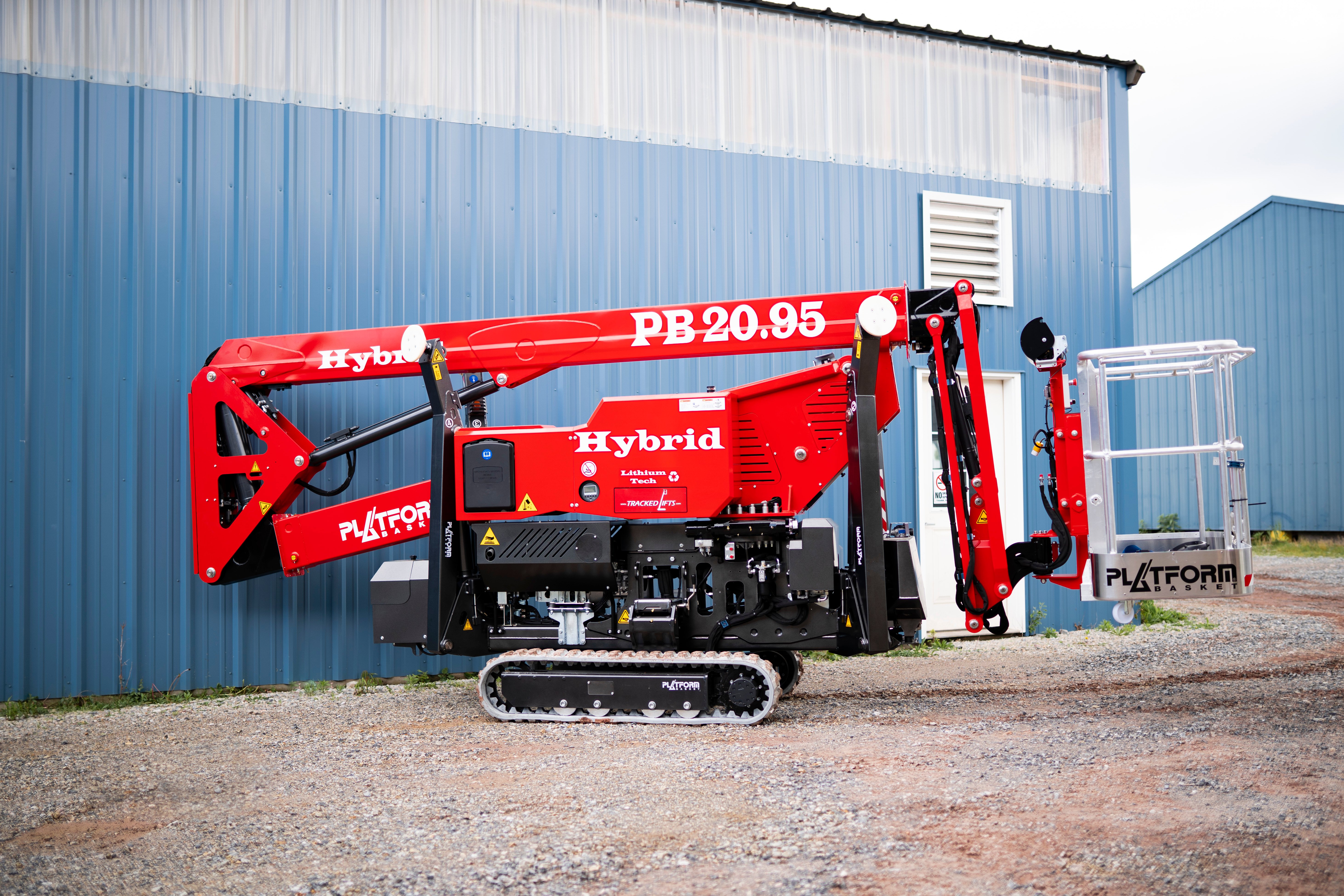

The Tracked Lift 20.95 is a tracked aerial platform that can reach a working height of 64 feet. Equipped with the best technologies available in the market to offer operators superior performance, the tracked 20.95 lift is “ultra light” and easy to transport with a trailer. It stands as an icon in the 64 feet working height segment for its light structure, outreach, and 551 lb basket load capacity without outreach restrictions. What’s more, it uses Platform Basket’s well-proven electronic control and movement system.

The TL 20.95 offers exceptional ground clearance, enabling it to travel over obstacles, and comes standard with auto-stow, radio control for drive and emergency aerial operations, on-board display with operation diagnostics, and protection on all exposed parts against the risk of falling objects. The tracked self-propelled aerial platform has no hose and cable lines outside of the booms, includes air, water, and 110 V power outlets, and features proportional and modular speed of drive and aerial movements.



REQUEST A QUOTE

Specifications

DOWNLOAD FULL SPECS
Max Working Height
Max Working Height: The highest point the platform can safely reach when fully extended.
64'
Max Outreach
Max Outreach: The maximum horizontal distance the platform can extend from the base.
31'2"
Max Basket Load
Max Basket Load: The total weight the platform can support, including operators and equipment.
551 lbs
Basket Size
Basket Size: The dimensions of the platform where operators stand and work.
4’6” x 2'3" (2-man basket)
Basket Rotation
Basket Rotation: The degree to which the platform can rotate to improve positioning.
+ / - 70° ( + / - 90° with 1-man basket)
Turret Rotation
Turret Rotation: The degree to which the base of the lift can turn without moving the entire machine.
360° non-continuous
Traveling Length
Traveling Length: The full length of the lift when folded for transport or storage.
15'11" (18'2" with basket)
Traveling Height
Traveling Height: The total height of the lift when fully lowered for transport.
6’6” narrow mode / 7’3” wide mode
Operational Width
Operational Width: The full width of the lift when deployed, including any extended stabilizers.
Outrigger spread - 10’8” x 10’12”
Battery
Battery: The power source for electric lifts, determining runtime and charging needs.
24V Lithium Ion Hybrid Power
Engine
Engine: A fuel-powered engine used in some lifts for extended use and outdoor work
Kubota Diesel, 11 HP
Total Weight
Total Weight: The overall weight of the lift, important for transport and ground stability.
6,283 lbs
Gradability (Max. across slope up)
Gradability (Max. across slope up) : The steepest side-to-side slope the lift can safely move on
31% (17°)
Gradability (Max. up and down slope)
Gradability (Max. up and down slope): The maximum incline or decline the lift can travel up or down.
36% (20°)
Deployment ability on slopes up to
Deployment ability on slopes up to: The steepest slope where the lift can be safely set up and operated.
31% (17°)
