Overview

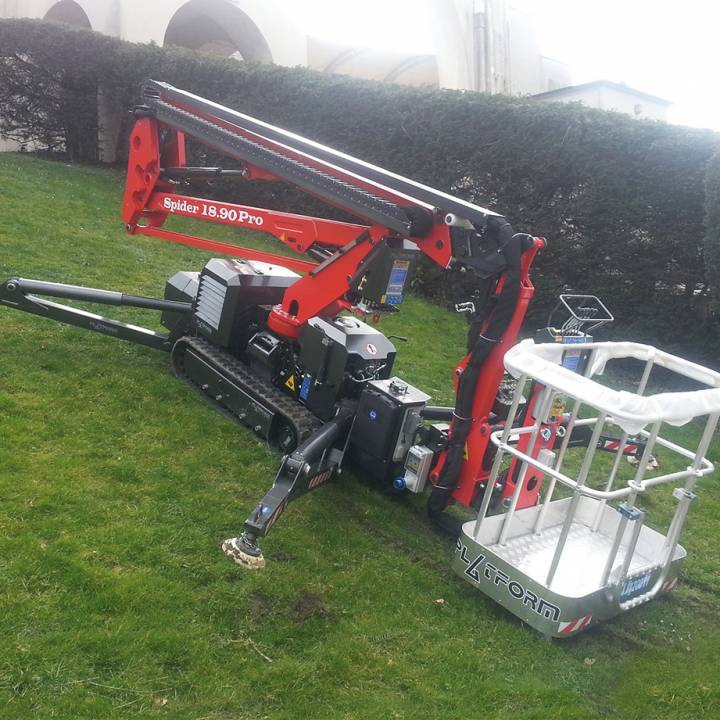

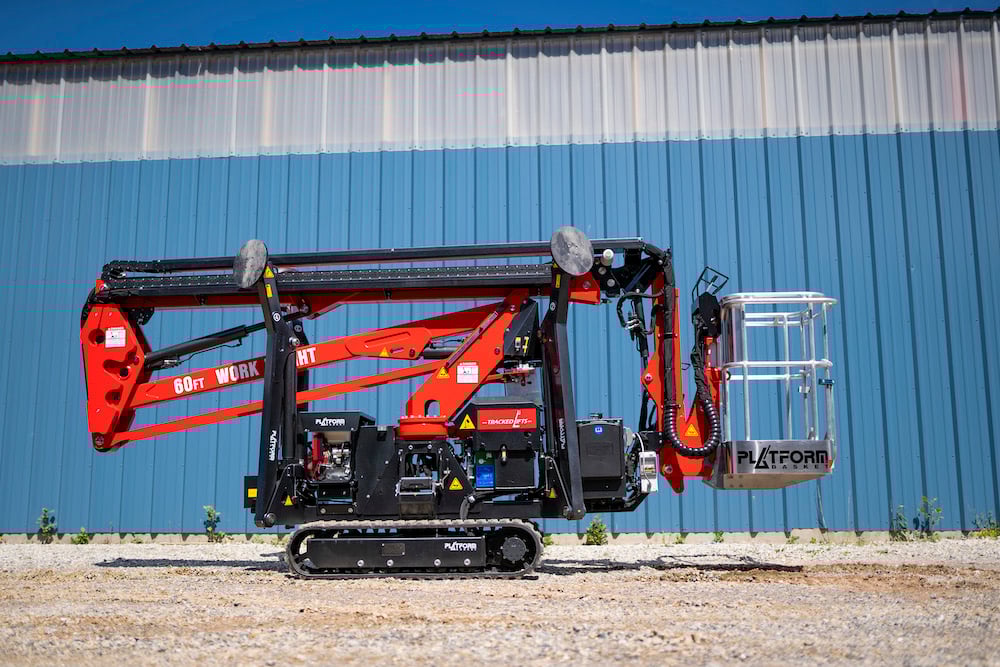

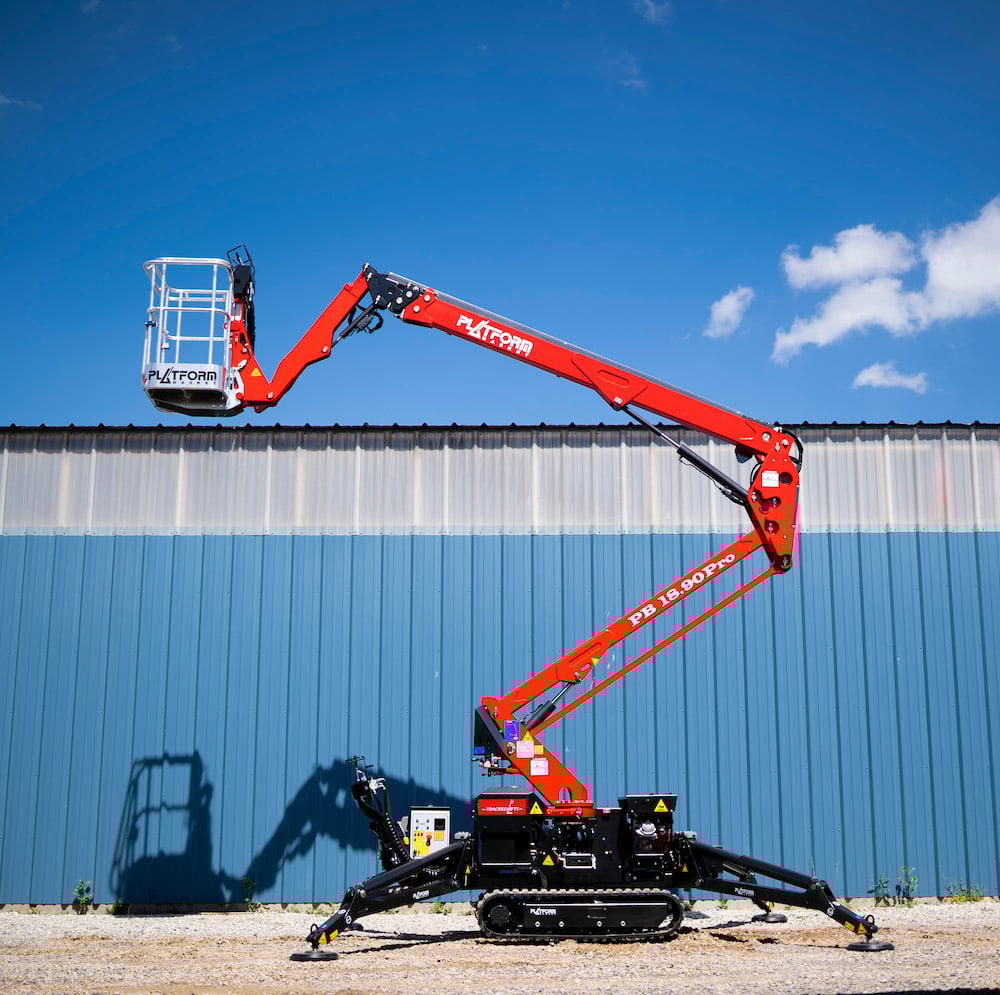

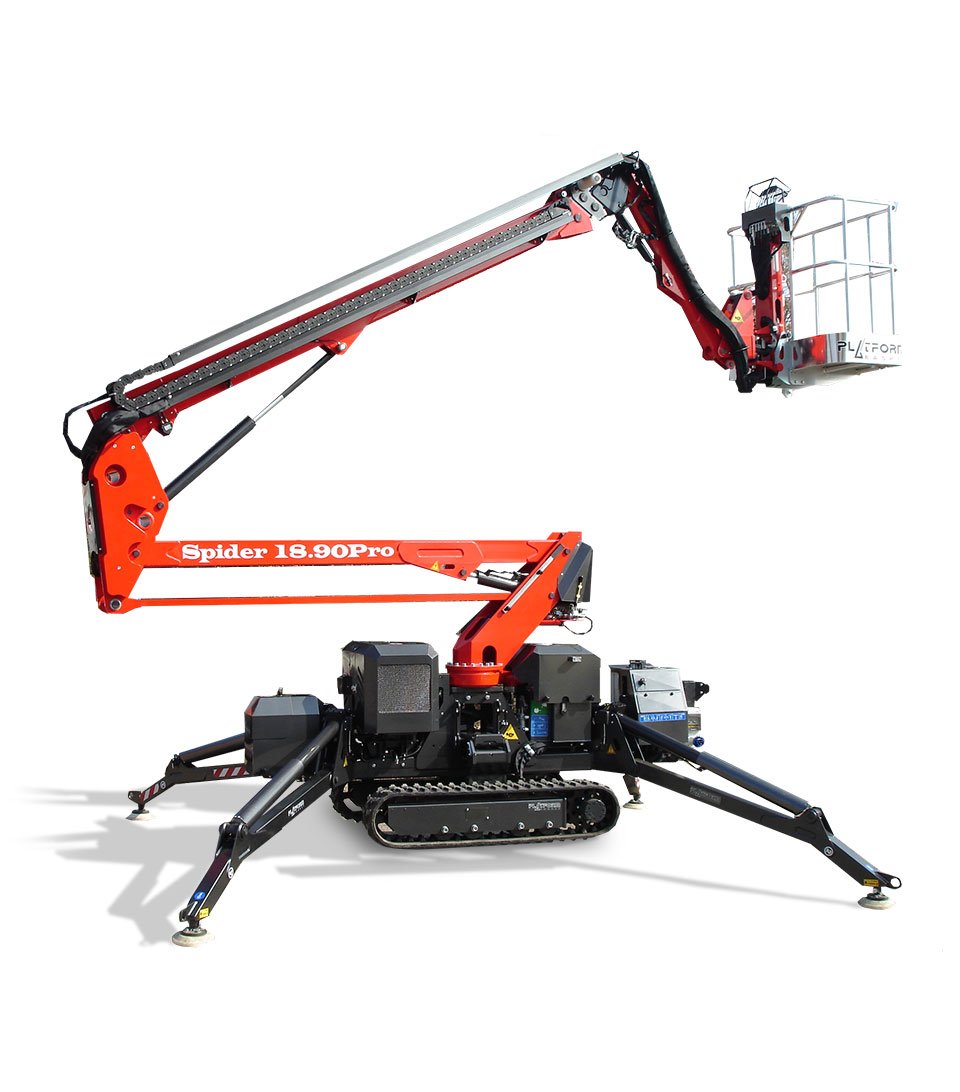

The Tracked Lift 18.90 can reach a working height of 60 feet. It was recently presented in its new PRO version with enhanced working diagram and a sharp reduction of vibrations and noise. Designed for operation in any environment, the model offers multiple motor options.
The jib affords excellent versatility and two big advantages: greater outreach and basket positioning precision. The TL 18.90 is robust, stable and reliable, built with quality components and protected against impacts through metal covers on all exposed parts. Multifunctional proportional hydraulic controls offer extreme precision and add to the ease of use of this platform.
Specifications
DOWNLOAD FULL SPECS
Max Working Height
60'
Max Working Height: The highest point the platform can safely reach when fully extended.
Max Outreach
30'10"
Max Outreach: The maximum horizontal distance the platform can extend from the base.
Max Basket Load
440 lbs
Max Basket Load: The total weight the platform can support, including operators and equipment.
Basket Size
2’7” x 2'3" (1-man basket)
Basket Size: The dimensions of the platform where operators stand and work.
Basket Rotation
+ / - 80° (add-on option)
Basket Rotation: The degree to which the platform can rotate to improve positioning.
Turret Rotation
360° non-continuous
Turret Rotation: The degree to which the base of the lift can turn without moving the entire machine.
Traveling Length
14'3" (16'5" with basket)
Traveling Length: The full length of the lift when folded for transport or storage.
Traveling Height
6’6” narrow mode / 7’2” wide mode
Traveling Height: The total height of the lift when fully lowered for transport.
Operational Width
Outrigger spread - 10'2" x 12'1"
Operational Width: The full width of the lift when deployed, including any extended stabilizers.
Battery
110V Emergency Descent System
Battery: The power source for electric lifts, determining runtime and charging needs.
Engine
Kubota Diesel, 13 HP
Engine: A fuel-powered engine used in some lifts for extended use and outdoor work
Total Weight
5,577 lbs
Total Weight: The overall weight of the lift, important for transport and ground stability.
Gradability (Max. across slope up)
31% (17°)
Gradability (Max. across slope up) : The steepest side-to-side slope the lift can safely move on
Gradability (Max. up and down slope)
29% (16°)
Gradability (Max. up and down slope): The maximum incline or decline the lift can travel up or down.
Deployment ability on slopes up to
31% (17°)
Deployment ability on slopes up to: The steepest slope where the lift can be safely set up and operated.
