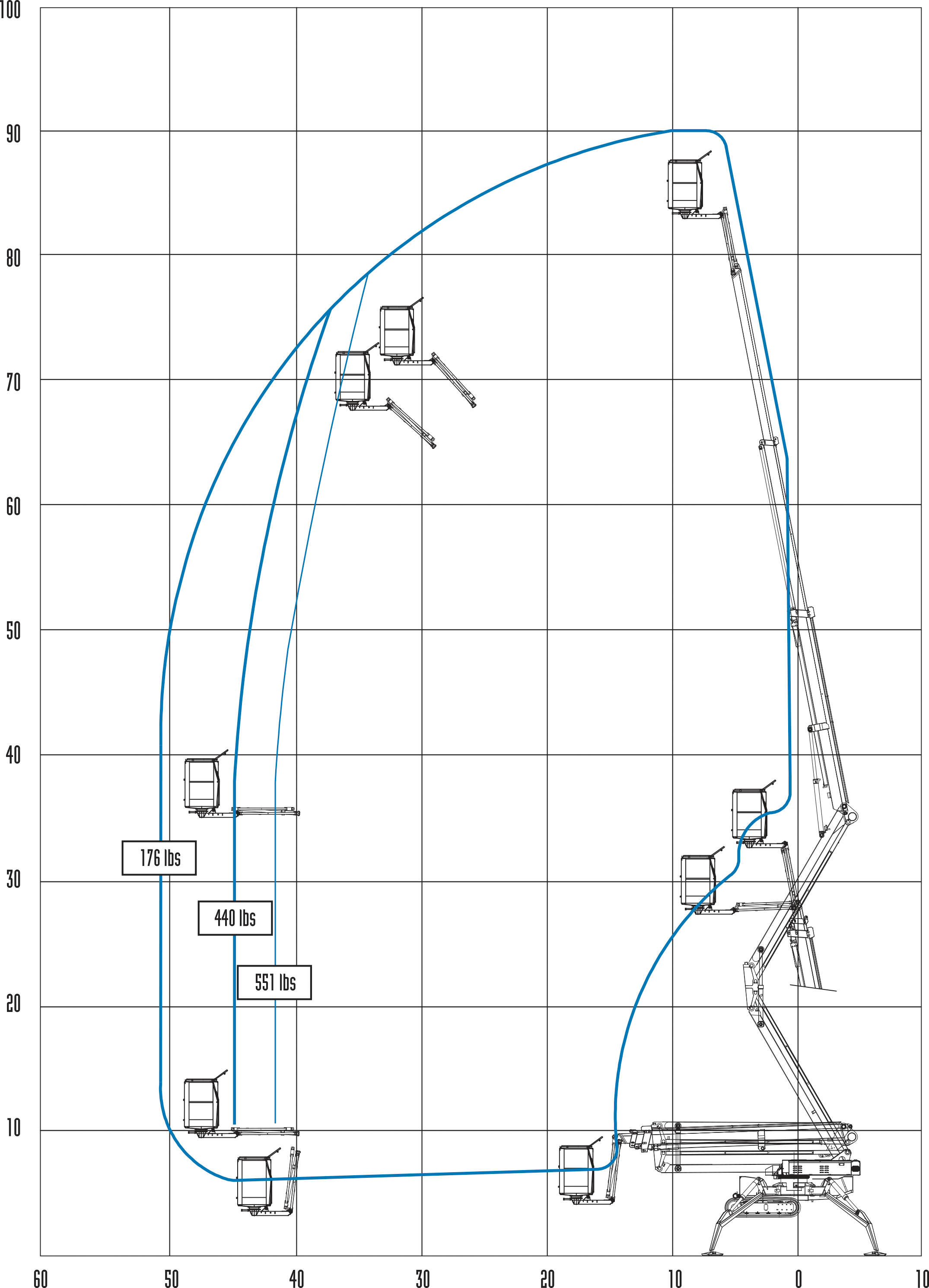

Chart
Specifications
Specifications
Max. working height
90'2"
Max. outreach
49'
Max. basket load
550 lbs
Basket size
3'2" x 2'10" (1-man basket)
Basket rotation
+ / - 41°
Turret rotation
355° non-continuous
Traveling length
21'7" (24'1" with basket)
Traveling height
7'2"
Traveling width
3’8” narrow mode / 4’11” wide mode
Operational width
Outrigger spread - 17’5” x 17’5” wide position / 10'7" x 21'10" narrow position
Battery
24V / 200Ah / 5h
Charger
24V / 25A
Engine
Kubota Diesel, 18.8 HP
Generator
24V / 22A
Total weight
11,420 lbs
Gradability, max. across slope up
35% (19.3°)
Gradability, max. up and down slope
35% (19.3°)
Deployment ability on slopes up to
40% (21.8°)
Power Pack
True Hybrid System Battery / Diesel Power
